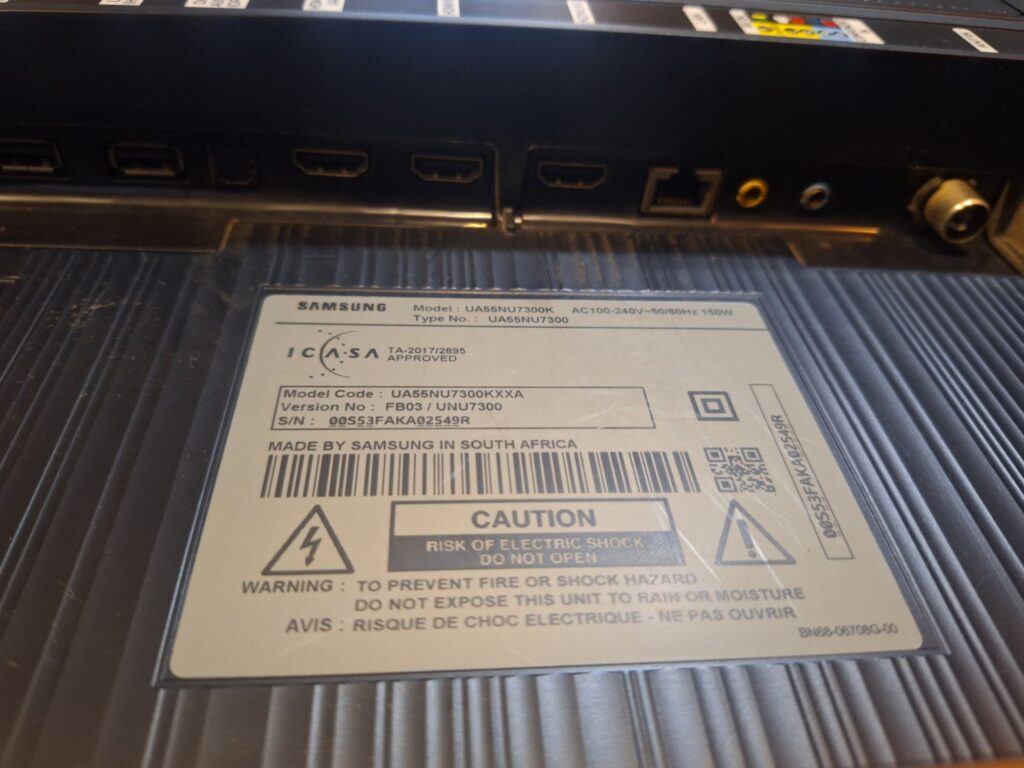

- Devices: Samsung 55NU7100 Flat / 55NU7300 Curved LED TVs

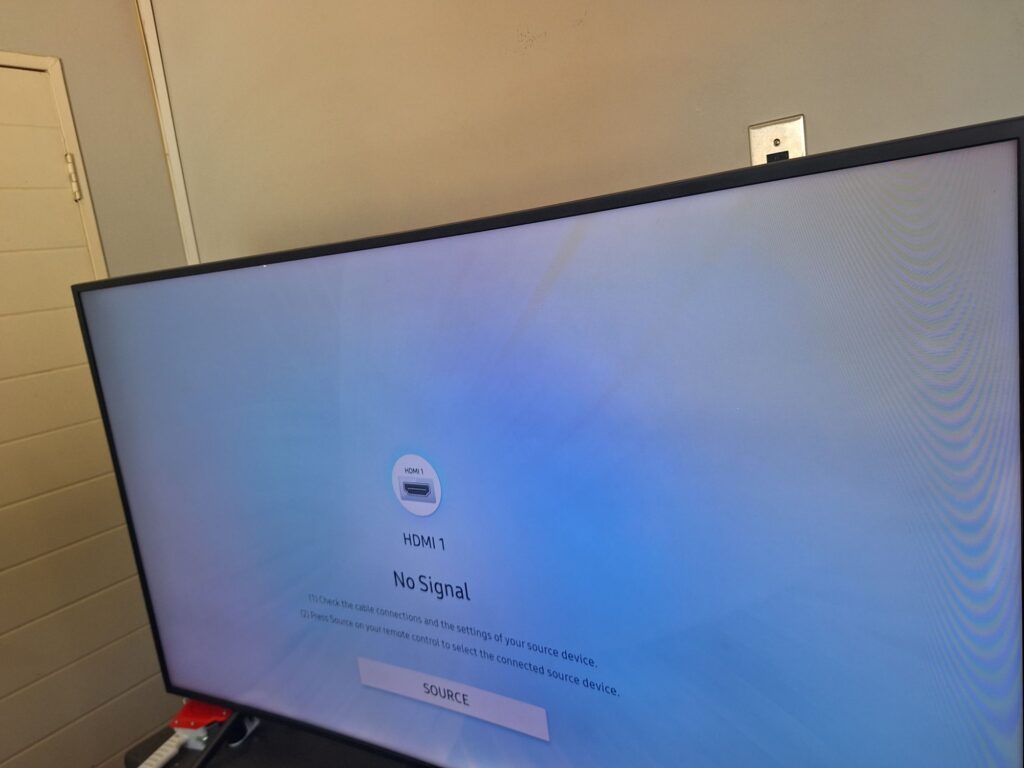

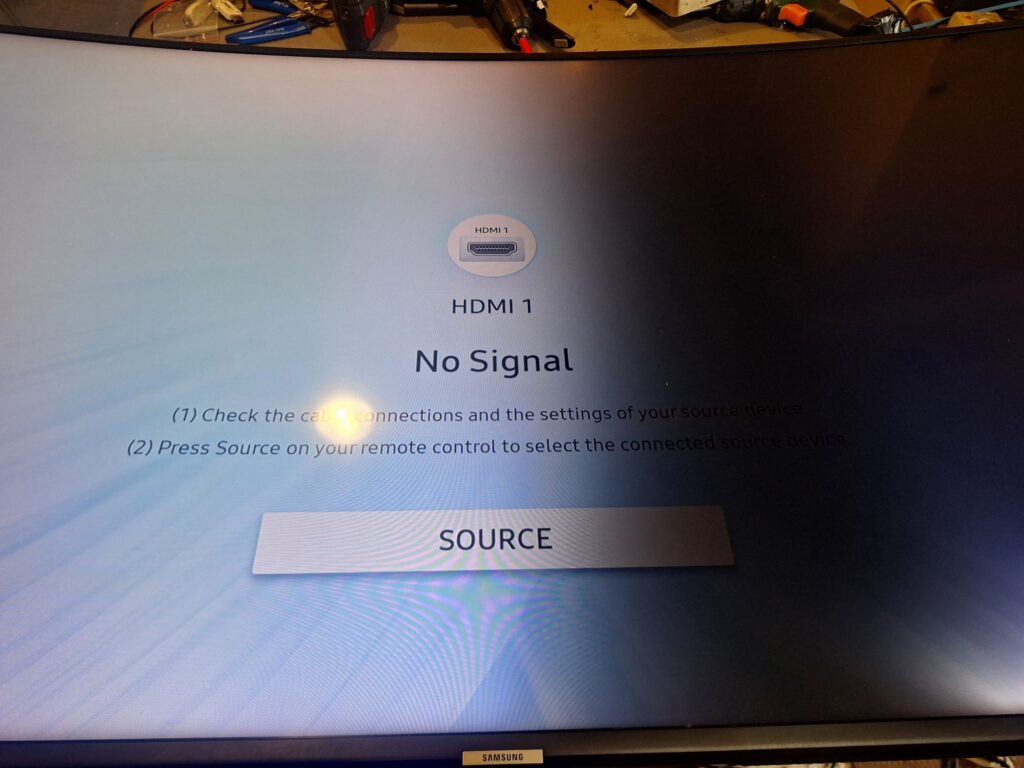

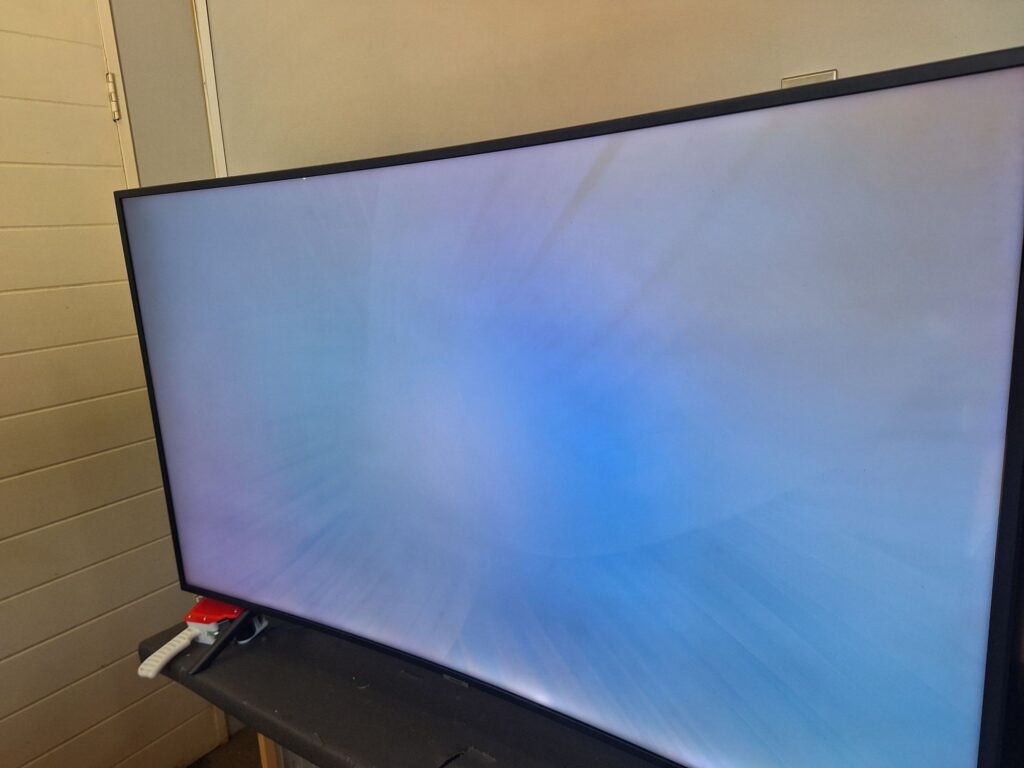

- Issue: Severe localized dark spots, shadow bleeding, and uneven illumination across the panel.
- Root Cause: Upon teardown and inspection, it was discovered that sections of the LED backlight array had burnt out, generating excessive localized heat that scorched and damaged the corresponding diffuser sheets.
Step-by-Step Repair Procedure
- Safe Teardown:
- Placed the screens face-down on a clean, soft, anti-static workbench to prevent panel stress (taking extra care with the curved frame of the 55NU7300).
- Carefully unclipped the rear casing, disconnected the internal power supply and mainboards, and safely set aside the delicate LCD and diffuser layers.
- Backlight Assessment:

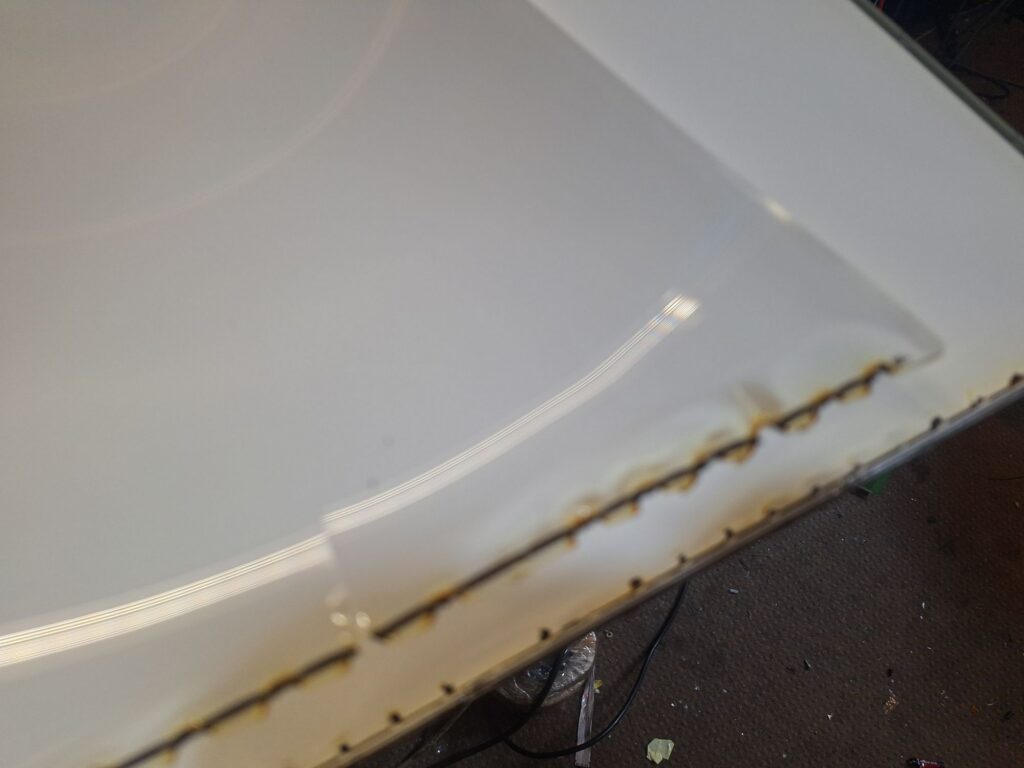

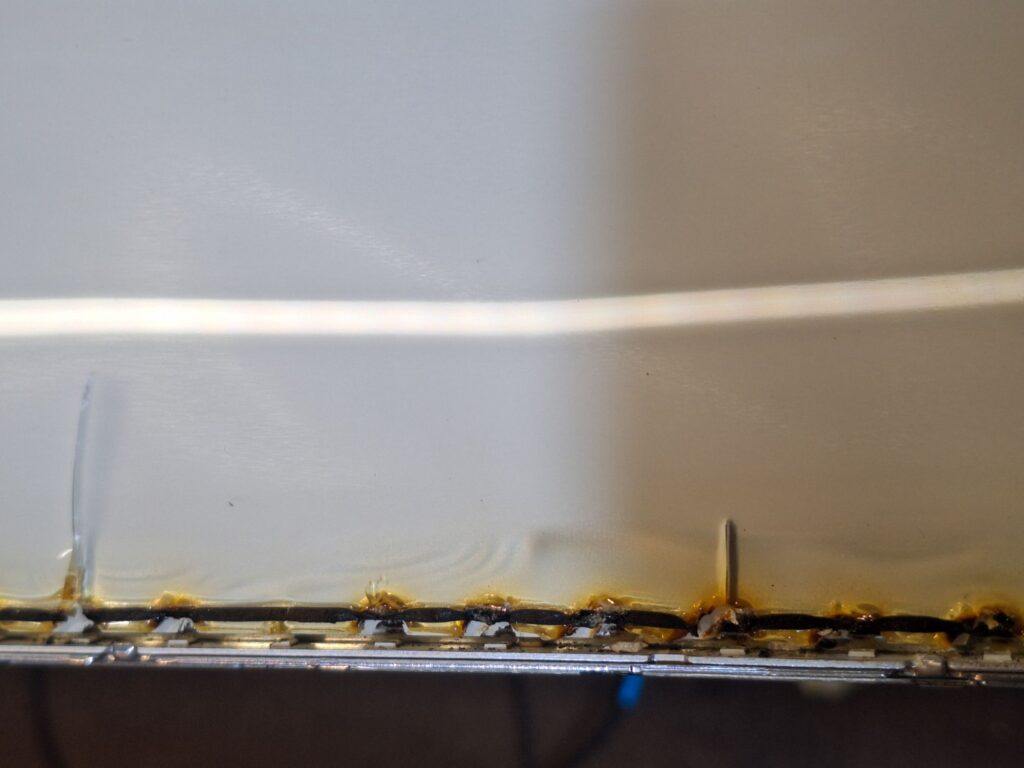

- Inspected the LED strips and confirmed thermal failure where individual LEDs shorted and scorched the reflector backing.
- Component Replacement:

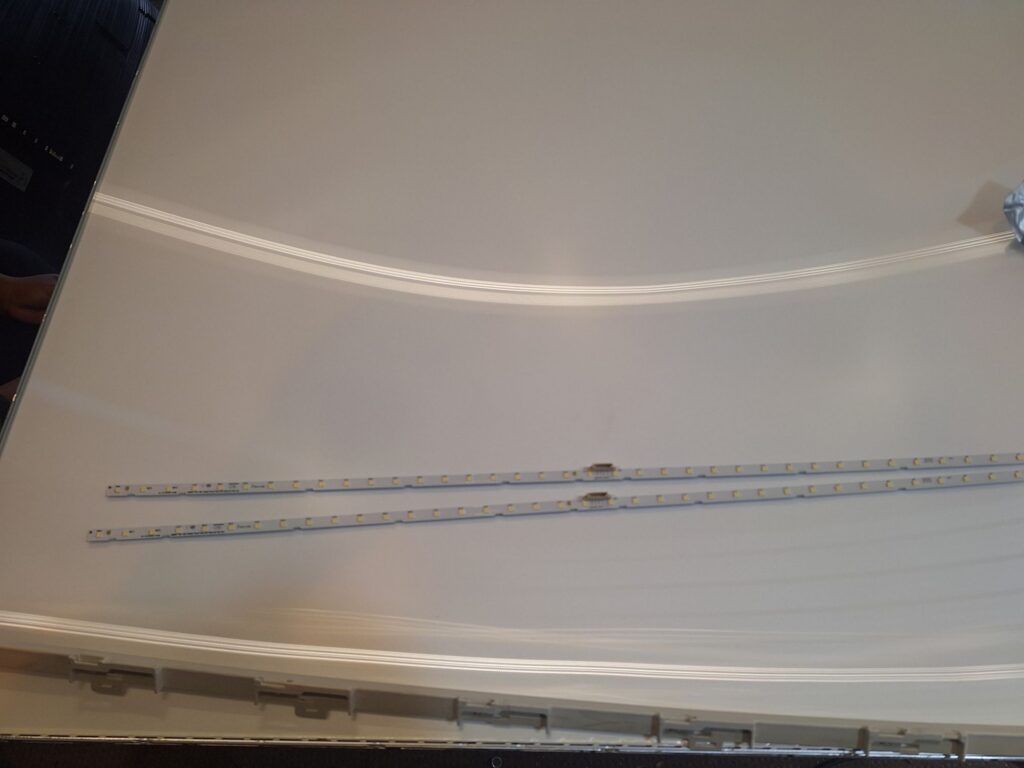

- Replaced the entire burnt LED backlight array with brand-new, high-efficiency strip sets to ensure uniform brightness and color temperature.
- Diffuser Sheet Restoration:

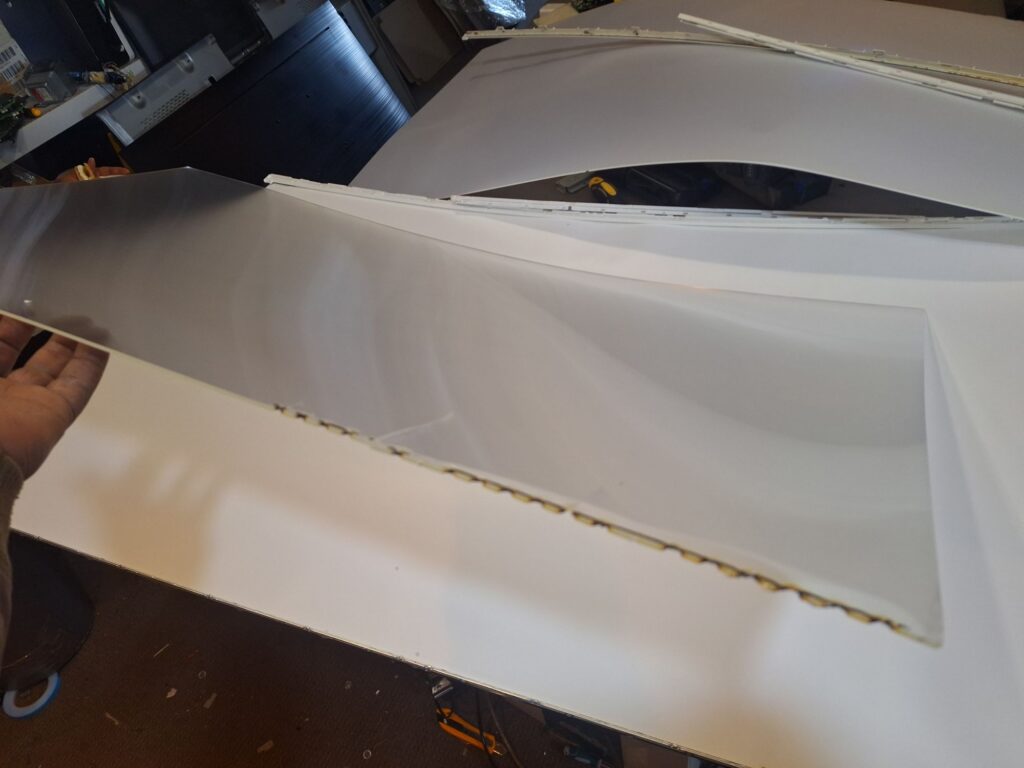

- Due to heat warping and burn marks on the original diffuser layers, the damaged diffuser sheets were completely replaced to eliminate dark shadows and light distortion.
- Reassembly & Testing:

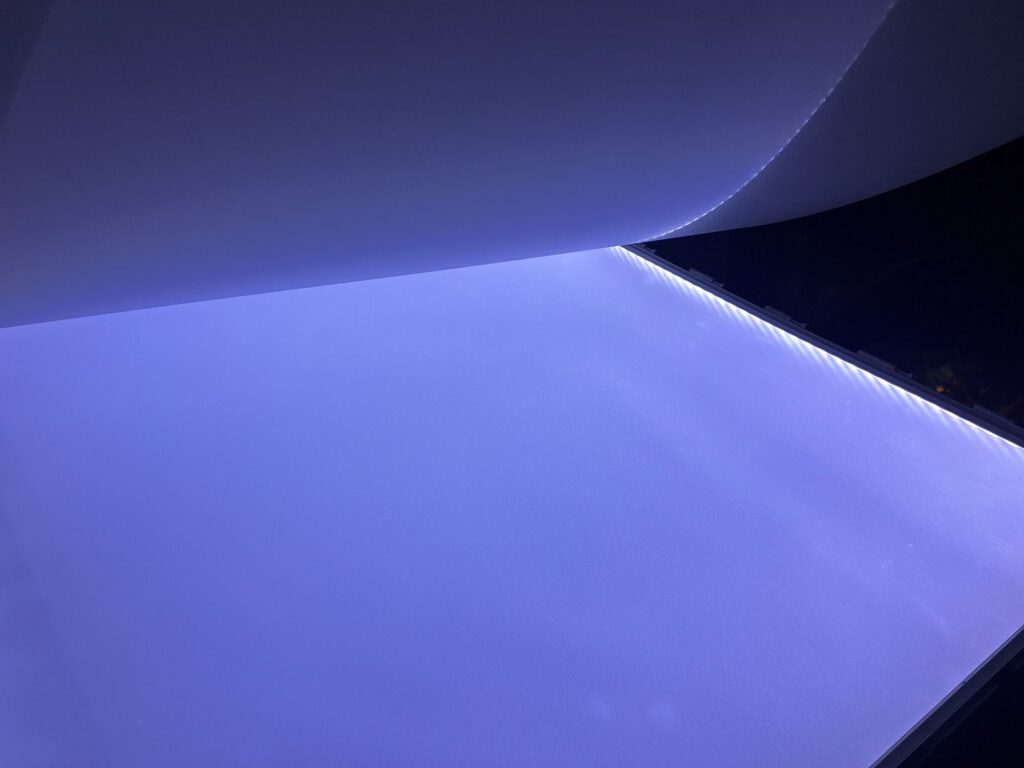

- Reassembled the panel sandwiches meticulously, ensuring zero dust contamination between the layers.
- Powered up both units for extended burn-in tests.
Result
The repairs were a complete success! Both the Samsung 55NU7100 and 55NU7300 came right, restoring crystal-clear picture quality and perfect backlight distribution without any hot spots or dark patches.
