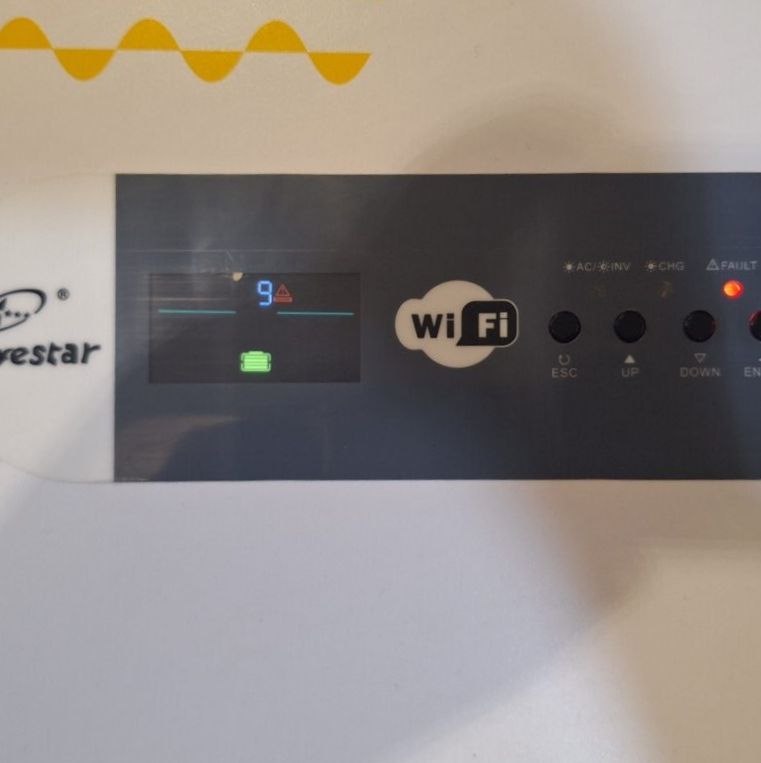

The Fivestar GF-8048 (6000W/48V) is a beast of a machine, but even the toughest hardware has its limits. We recently took in a unit that was completely dead, displaying the dreaded Error 09 (Bus Soft Start Fail).

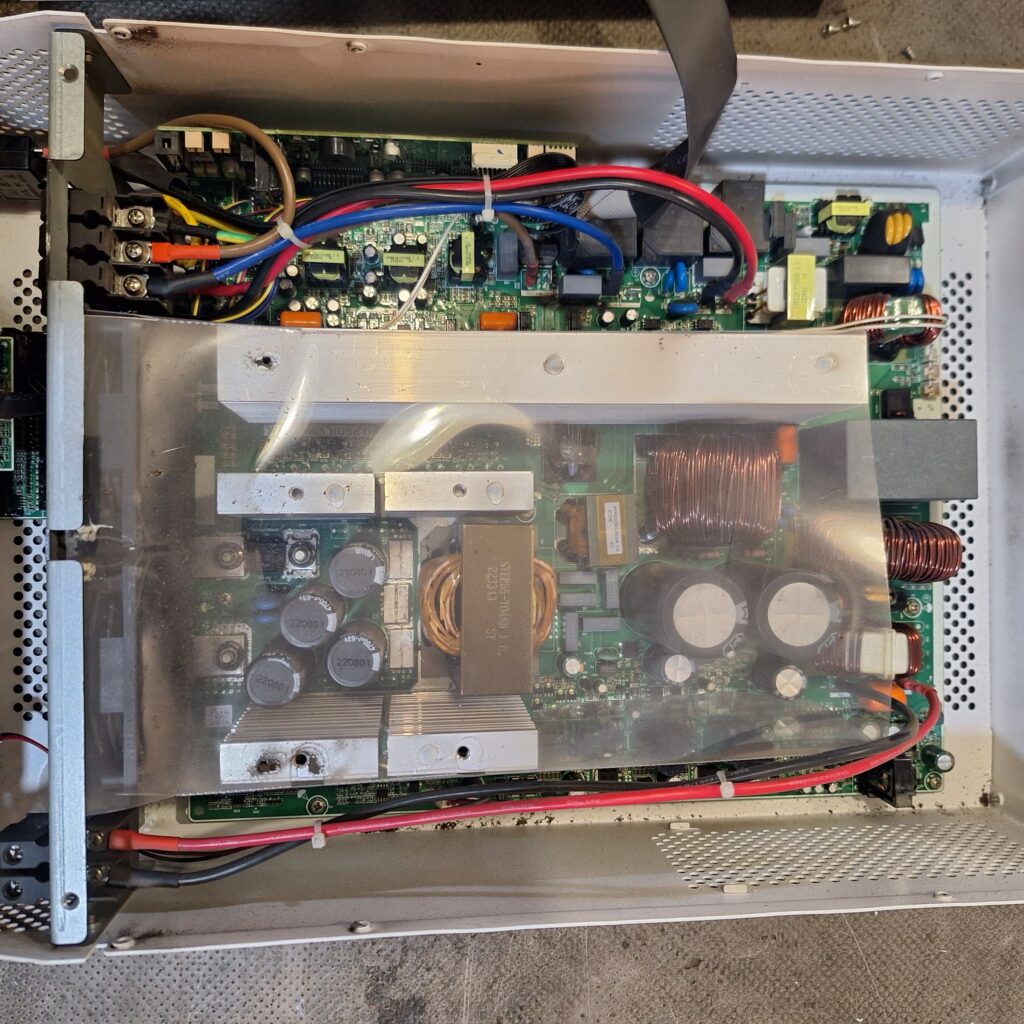

Upon opening the casing, it was clear that this wasn’t a simple “swap a capacitor” job. The damage to the mainboard was catastrophic—multiple burnt traces and carbonized PCB sections—rendering a component-level repair impossible. Here’s how we handled the full mainboard replacement.
Understanding Error 09: Bus Soft Start Fail
On Fivestar and similar Axpert-style high-frequency inverters, Error 09 occurs when the internal DC bus fails to reach the required voltage (typically around 400V–450V DC) within a specific timeframe during startup.
Common Culprits:
- Shorted MOSFETs in the DC-DC converter stage.
- Damaged Bus capacitors.
- A “flashover” or short circuit on the PCB (which is exactly what happened here).
The Repair Process: Step-by-Step
1. Damage Assessment & Safety
The first rule of 48V systems: Respect the current. We disconnected the 48V battery bank and the AC input. Using a multimeter, we confirmed the large electrolytic capacitors were fully discharged before touching the internals.

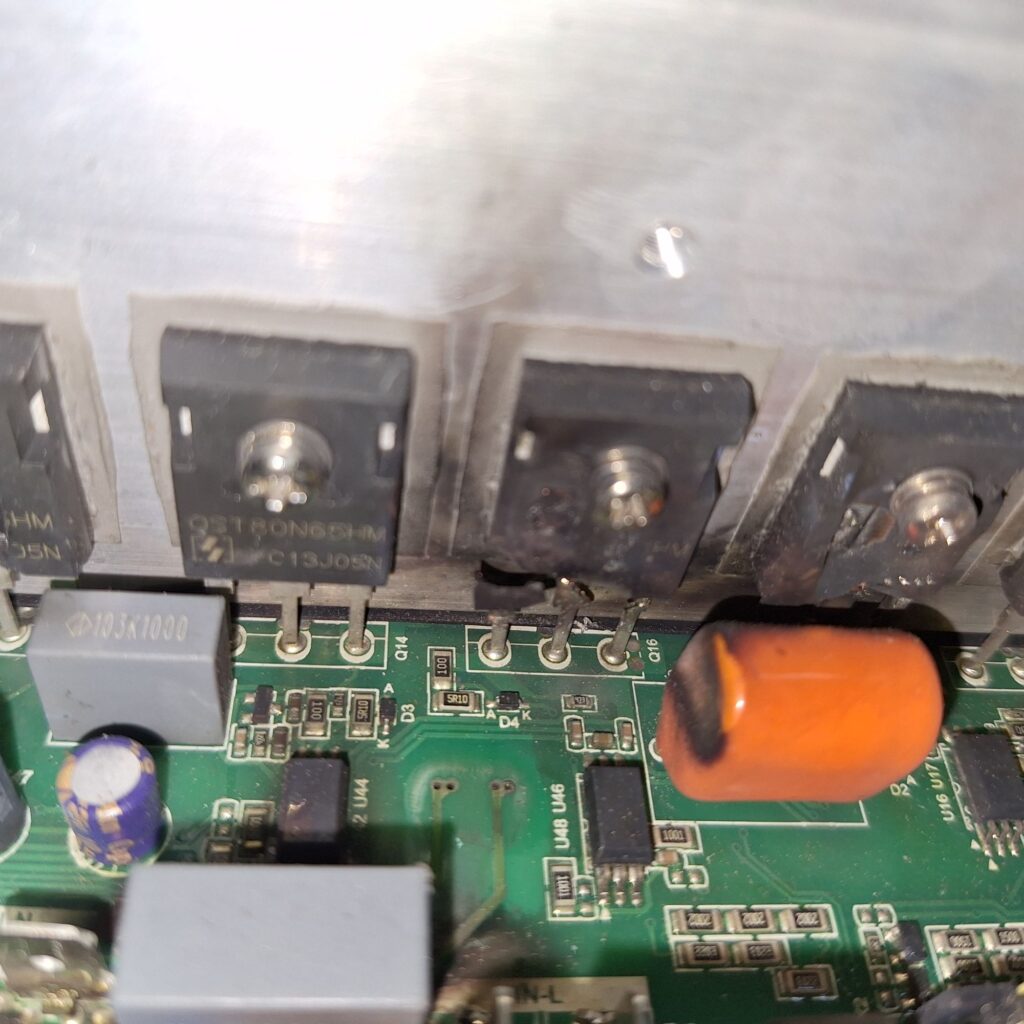

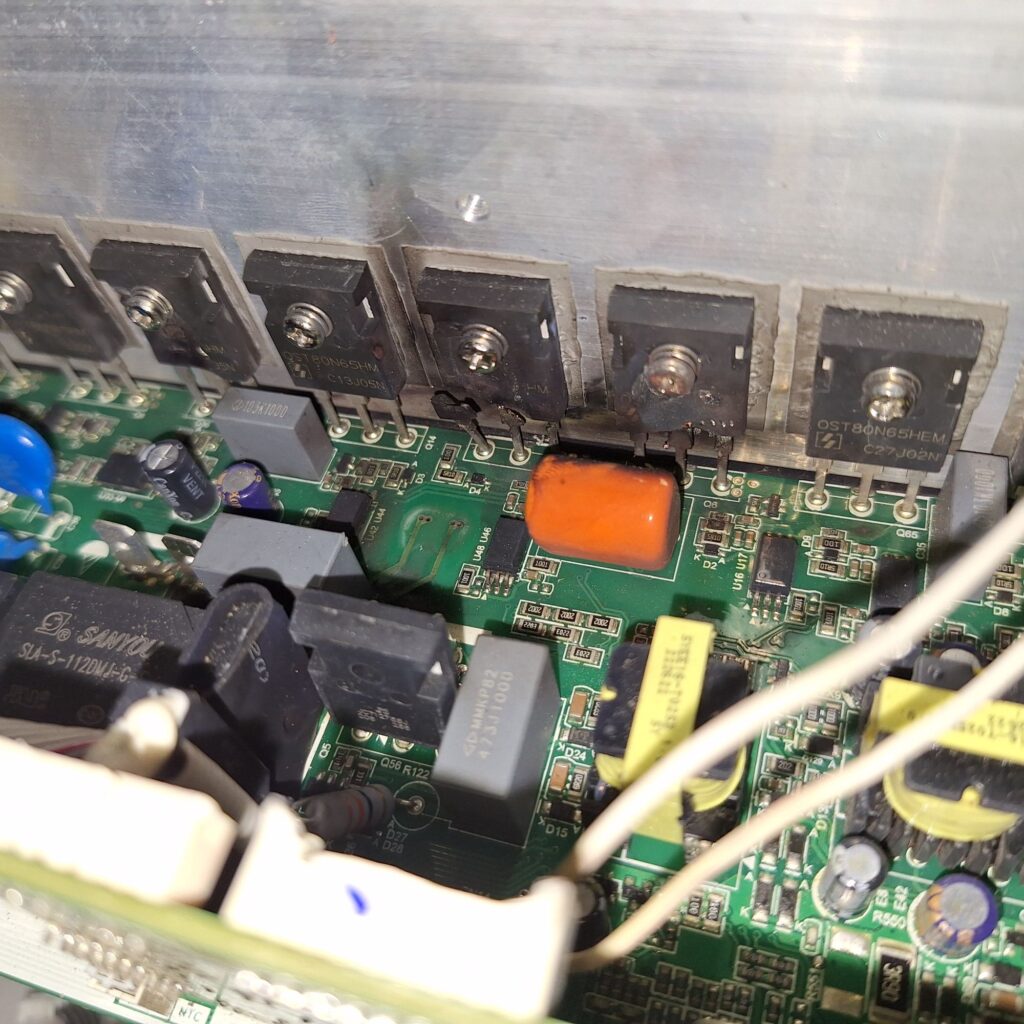

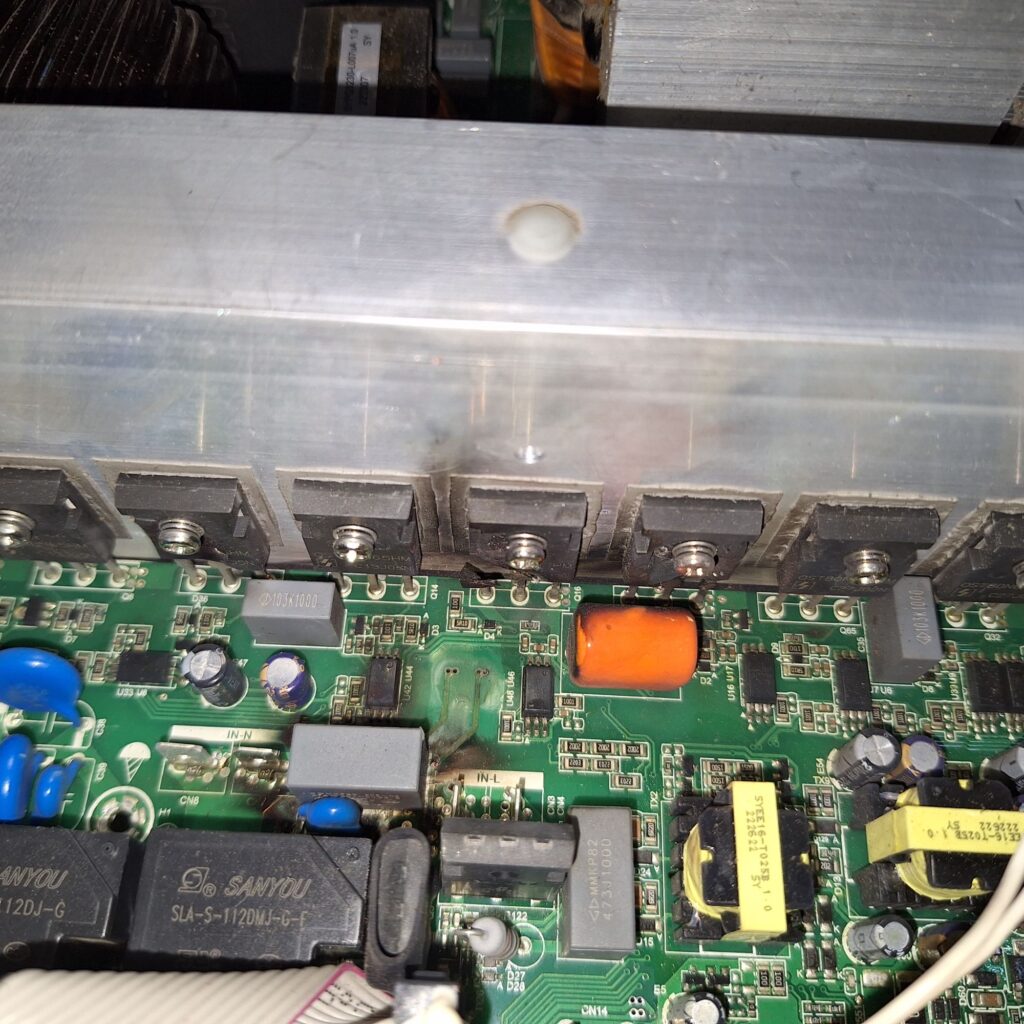

The original board had significant “arcing” near the high-voltage section. When a board is “carbonized” (the green fiberglass turns black and conductive), the board itself becomes a resistor. At this point, replacement is the only safe option to prevent a future fire.
2. Disassembly and Labeling

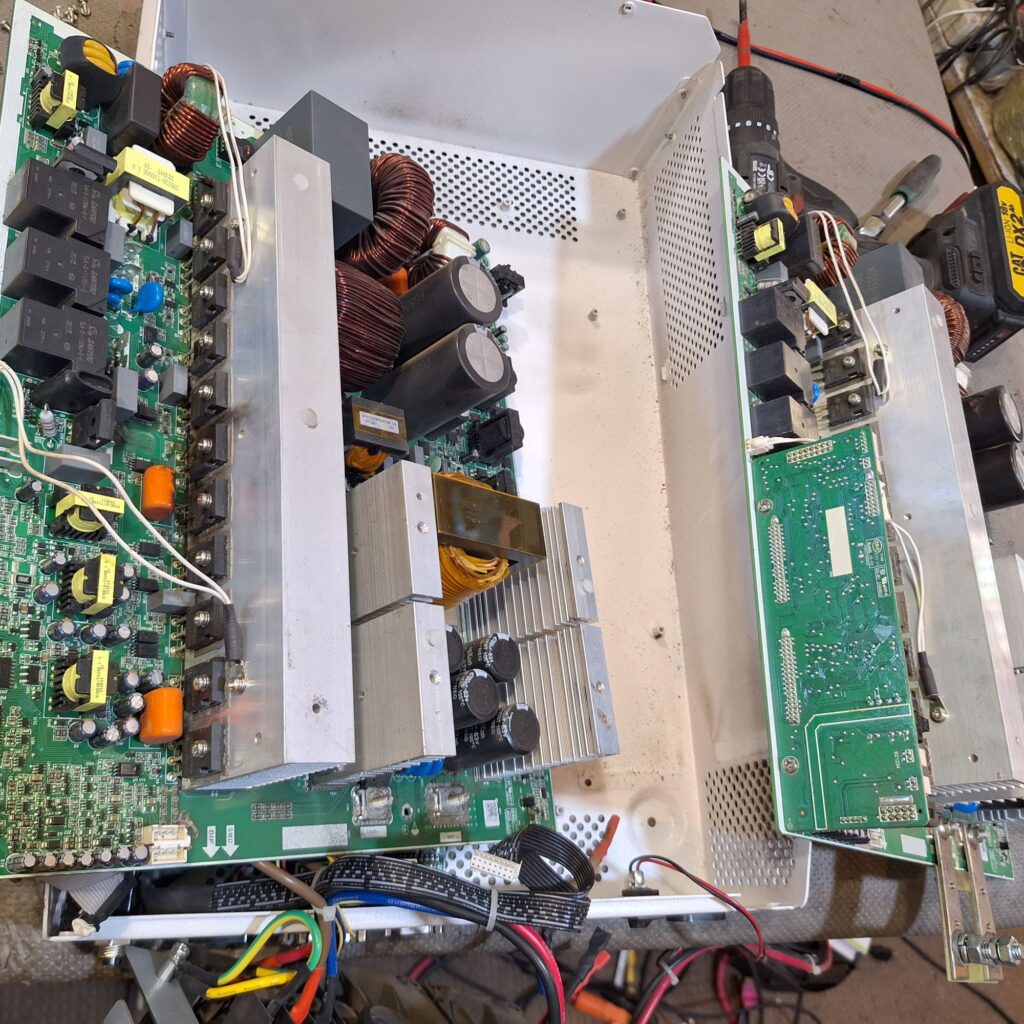

Replacing a 6000W board involves a lot of heavy-gauge wiring.
3. Installing the New 8kVA Mainboard
We sourced an OEM replacement board specifically for the 8048 model.
Pro Tip: Not all “8kVA” boards are identical. We verified the firmware version and the shunt resistor ratings to ensure compatibility with the existing LCD firmware.
4. The “Soft” Power-Up
Before applying full battery power, we used a current-limiting power supply. This allows the capacitors to charge slowly. If there were a secondary fault (like a shorted transformer), the power supply would trip before blowing the new board.
5. Testing & Calibration
Once the unit stayed on without Error 09, we performed three tests:
- Inverter Test: Ran a 2000W load to check for stable AC output.
- Charge Test: Connected AC grid input to ensure the charging circuit correctly identified the 48V bank.
- Fan Cycle: Confirmed that all fans triggered as the temperature rose.
Summary
The Fivestar GF-8048 is a repairable workhorse, but Error 09 is often a sign of major hardware failure. By replacing the entire mainboard and verifying the peripheral components, we’ve given this unit a second life at a fraction of the cost of a new inverter.
Is your inverter flashing Error 09 or Error 08? Don’t keep trying to restart it, as this can cause further damage to the transformer.
